Week 2 — Variables and Conditionals

Variables and conditional logic — the two things that make a program respond to state rather than draw the same thing every frame. Covers data types, scope, operators, and if/else.

Variables

Data types

  • Numbers - integers, floating point values
  • Strings - usually in ” ” —> this or ’ ’ —> this.
  • Null
  • Boolean - true or false

Variables

  • Declare variable using ‘var’ key word
  • var NAME_OF_VARIABLE = Initial value of variable
  • Variable names are case sensitive
  • print keyword is used to print the variable value into console

Variable Scope

Global Variables

  • Variables declared outside the scope i.e., {} —> these thingys, are global variables.
  • A variable can be just declared without assigning a value. But a value needs to be assigned later on.

Local Variables

  • Variables declared in setup or within any function have scope within setup or that function.
  • Meaning they are local variables not available to any functions outside the parent function.
  • When tried to access local variable outside the scope, it gives “Uncaught ReferenceError: Variable is not defined”

Pre Defined Variables

Number

  • width - Width (in pixels) of sketch window
  • height - Height (in pixels) of sketch window
  • frameCount - No. of frames displayed
  • frameRate - FPS (Usually at 60 FPS)
  • windowWidth - width of the browser window
  • windowHeight - height of the browser window
  • key - Most recent key pressed on the keyboard
  • keyCode - Numeric code for the key pressed on keyboard in ASCII
  • mouseX - x position of the mouse cursor
  • mouseY - y position of the mouse cursor

Boolean

  • keyIsPressed - Is a key pressed? true/false
  • mouseIsPressed - Is the mouse pressed?

Misc

  • mouseButton - Which mouse button is pressed? LEFT, CENTER or RIGHT?

Operators / Operator Expressions

  • ’+’ addition
  • ’-’ subtraction
  • ’*’ multiplication
  • ’/’ division
  • ’%’ modulo (This gives the remainder after multiplication)
  • ’=’ assignment
  • ’!’ bang operator (Returns opposite of a boolean)

Expressions

  • ‘Hello’ + ’ ’ + ‘there!’ gives Hello there! (Or General Kenobi if you are nasty.)
  • Basic arithmetic works the same.
  • 23%4 (23 mod 4) gives 3.

Logic

Conditional expressions / Relational Operators

  • === - comparison/ equality
  • != - not equal to/ inequality (! - bang symbol)
  • < - less than
  • ’>’ - greater than
  • <= less than or equal to
  • ’>=’ greater than or equal to

Boolean Operators

true or false

if true
  do this
else if true
  do this
else
  do this

Logical Operators / Expressions

  • && - logicalAND - if A && B both or true
  • || - logicalOR - if A || B either one is true
  • ! - NOT - if !A

NOTE: In javaScript ”==” is loose equality and results in type coercion. Type coercion is the process of converting value from one type to another (such as string to number, object to boolean, and so on). Any type, be it primitive or an object, is a valid subject for type coercion. More on this is explained at FreeCodeCamp

Example sketches

The p5 sketches for this week, from the course repo.

2.2 — Variablesrepo ↗

// Declare variable using 'var' key word
// var NAME_OF_VARIABLE = Initial value of variable
// Here variable bgRed is initialized at 200
// Variable names are case sensitive
var bgRed = 200;

var xpos = 50;
var ypos = 50;
var side = 150;

function setup() {
  createCanvas(400, 400);

  /*
  Data types
  Numbers
  Strings - usually in "" or ''
  Null
  Boolean - true or false
  */

  var myString = "Hello there!";
  // println key word is used for printing
  print(myString);

  var theBestNumberEver = 73;
  print(theBestNumberEver);

  var canYouHandleTheTruth = false;
  print(canYouHandleTheTruth);

  var whatcugot = null;
  print(whatcugot);
}

function draw() {
  background(bgRed, 24, 0);
  fill(bgRed/2, 24, 12);

  //Using varibales for function arguments
  rect(xpos,ypos,side,side);

  //side = side + 1;
}
2.3 — Variable Scoperepo ↗
/* Variables declared out side the scope
i.e., {} --> these thingys, are global variables*/

var bgRed = 200;
var bgGreen = 12;

// A varibale can be just declared with out assigning a value.
// But a value needs to be assigned later on
// bgBlue declared here
var bgBlue;

function setup() {
  createCanvas(400, 400);

  /* Variables declared in setup have scope with in setup
  -Meaning they are local variables not availabe to any functions
  outside setup

  -*/
  /*
  If this not done, there is no error raised, but the
  sketch doesn't load
  A value assigned to bgBlue
  */

  bgBlue = 24;
  // These are local variables
  /*var bgRed = 200;
  var bgGreen = 12;
  var bgBlue = 24;*/

}

function draw() {
  /*
  When tried to access local varibale out side the scope,
  it gives "Uncaught ReferenceError: Variable is not defined"
  */
  background(bgRed,bgGreen,bgBlue);

  // Basic drawing with build-in mouse vaiables
  // mouseX and mouseY define the width and height of the shape here
  stroke(255);
  //RECTANGLE
  //rect(20,20,mouseX,mouseY);

  //ELLIPSE
  //ellipse(width/2, height/2, mouseX, mouseY);

  //SUGGESTED EXERCISE
  rect(mouseX, mouseY, 30,30);
}

/* PRE DEFINED VARIABLES

NUMBER
- width - Width (in pixels) of sketch window
- height - Height (in pixels) of sketch window
- frameCount - No. of frames displayed
- frameRate - FPS (Usually at 60 FPS)
- windowWidth - width of the browser window
- windowHeight - height of the browser window
- key - Most recent key pressed on the keyboard
- keyCode - Numeric code for the key pressed on keyboard in ASCII
- mouseX - x position of the mouse cursor
- mouseY - y position of the mouse cursor

BOOLEAN
- keyIsPressed - Is a key pressed? true/false
- mouseIsPressed - Is the mouse pressed?

Misc
- mouseButton - Which mouse button is pressed?
                LEFT, CENTER or RIGHT?
*/
2.4 — Logicrepo ↗
var xposTopLeft = 100;
var yposTopLeft = 100;
var xposBottomRight = 300;
var yposBottomRight = 300;

function setup() {
  createCanvas(400, 400);
}

function draw() {
  background(100);

  fill(0,0,255);
  rect(100,100,200,200);
  //if mouse is in the rectangle then make a circle at the cursor

  if (mouseX > xposTopLeft && mouseY > yposTopLeft){
    if (mouseX < xposBottomRight && mouseY < yposBottomRight){
      fill(255);
      ellipse(mouseX,mouseY,25,25);
    }
  }
}

/*
Conditional expressions / Relational Operators
= - assignment
=== - comparison/ equality
!= - not equal to/ inequality (! - *bang* symbol)
< - less than
> - greater than
<= less then or equal to
>= greater than or equal to

Boolean Operators
true or false

if true
  do this
else if true
  do this
else
  do this

Logical Operators/ Expressions

&& - logicalAND - if A && B both or true
|| - logicalOR  - if A || B either one is true
! - NOT - if !A

-----------------------------
In javaScirpt "==" is loose equality and results in
type coersion. Type coercion is the process of converting
value from one type to another (such as string to number,
object to boolean, and so on). Any type, be it primitive
or an object, is a valid subject for type coercion.
[More on FreeCodeCamp: https://www.freecodecamp.org/news/js-type-coercion-explained-27ba3d9a2839/]

*/

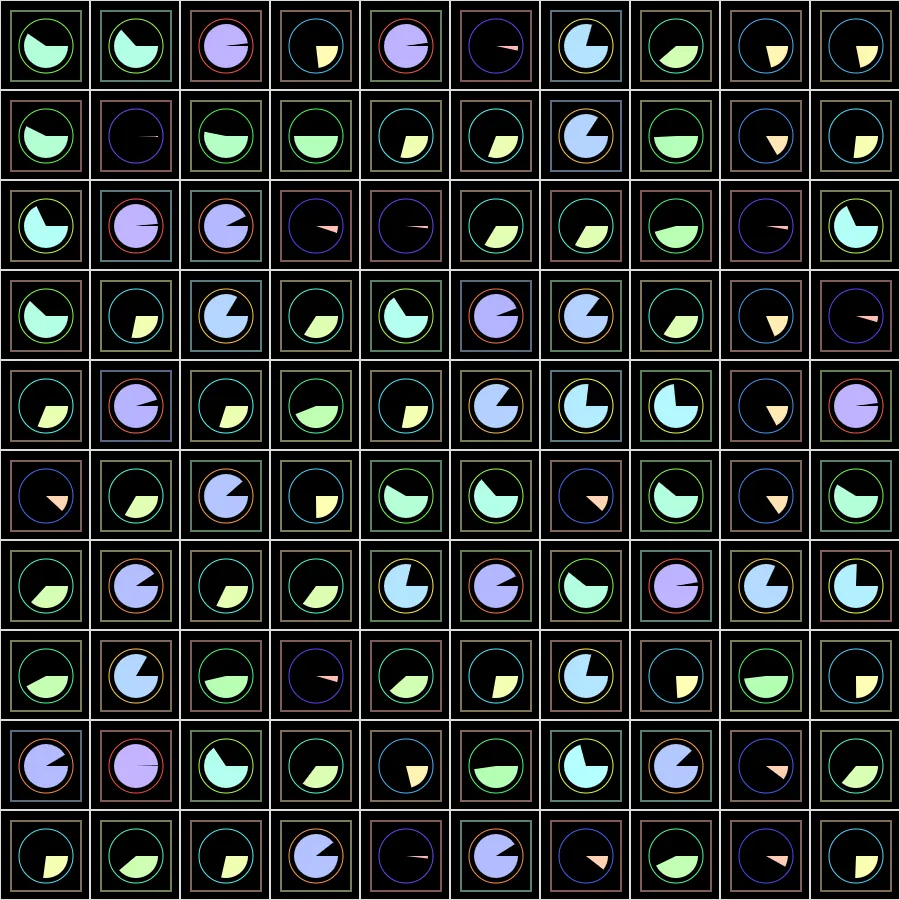

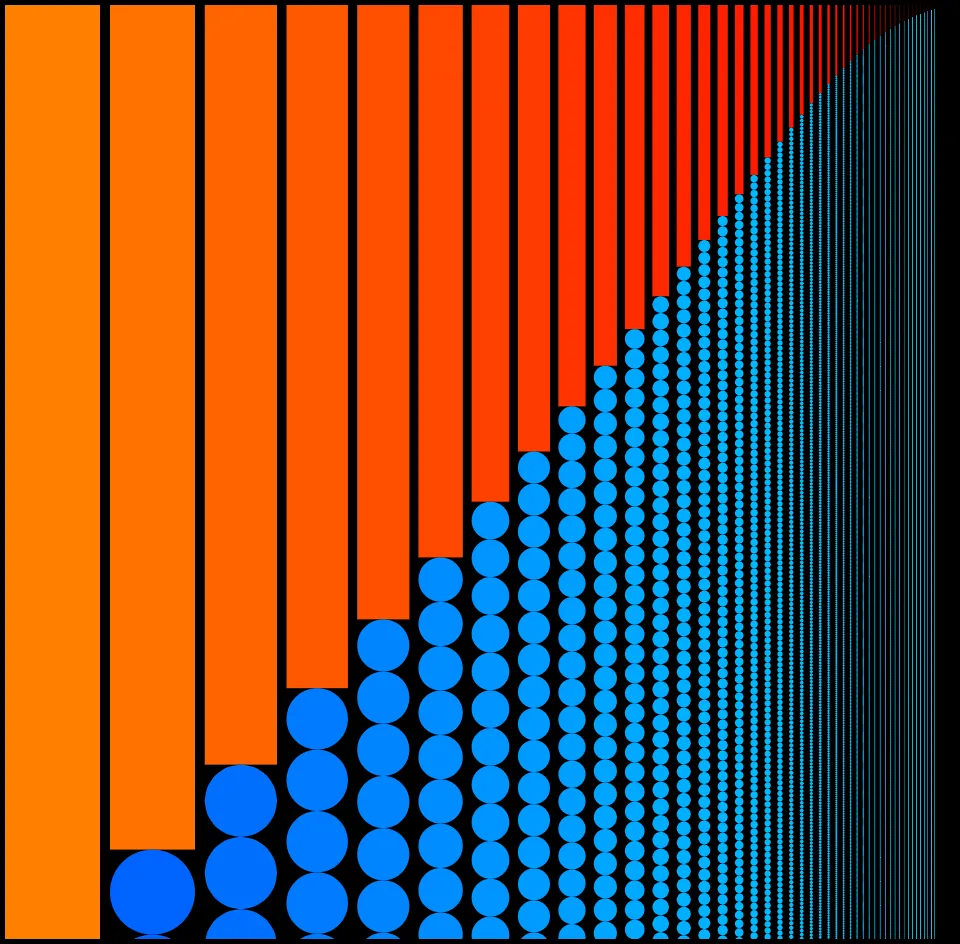

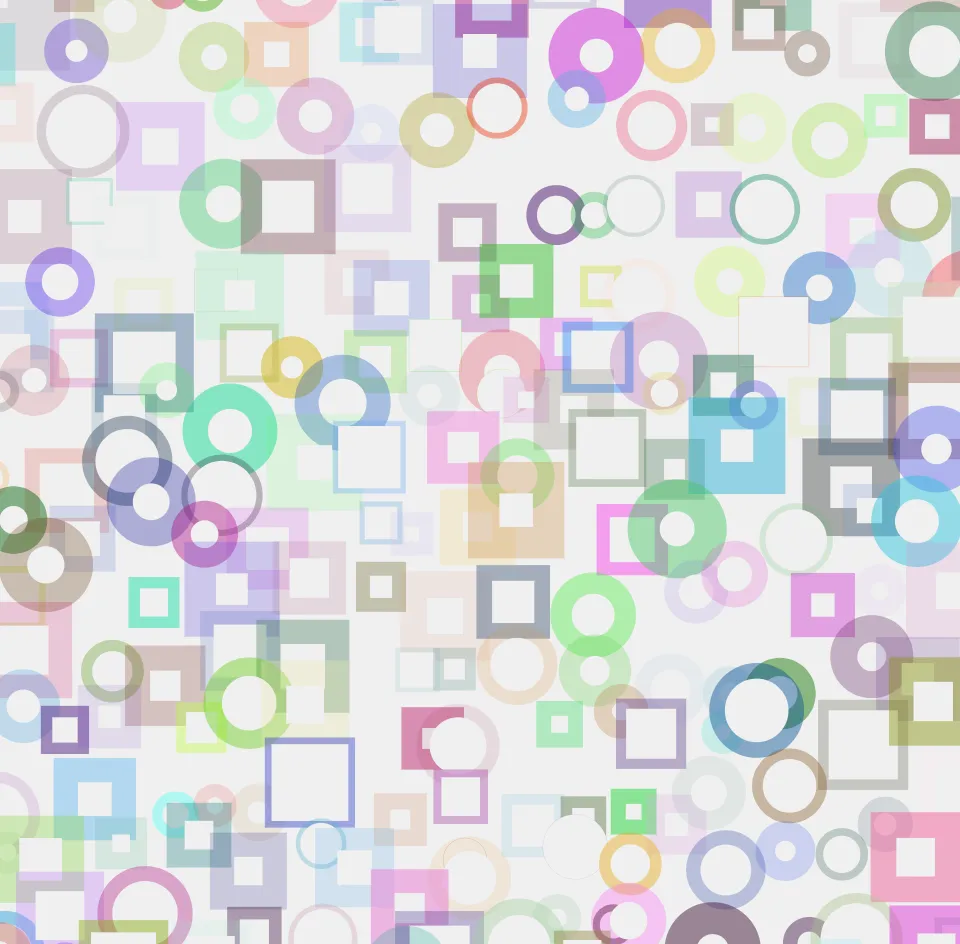

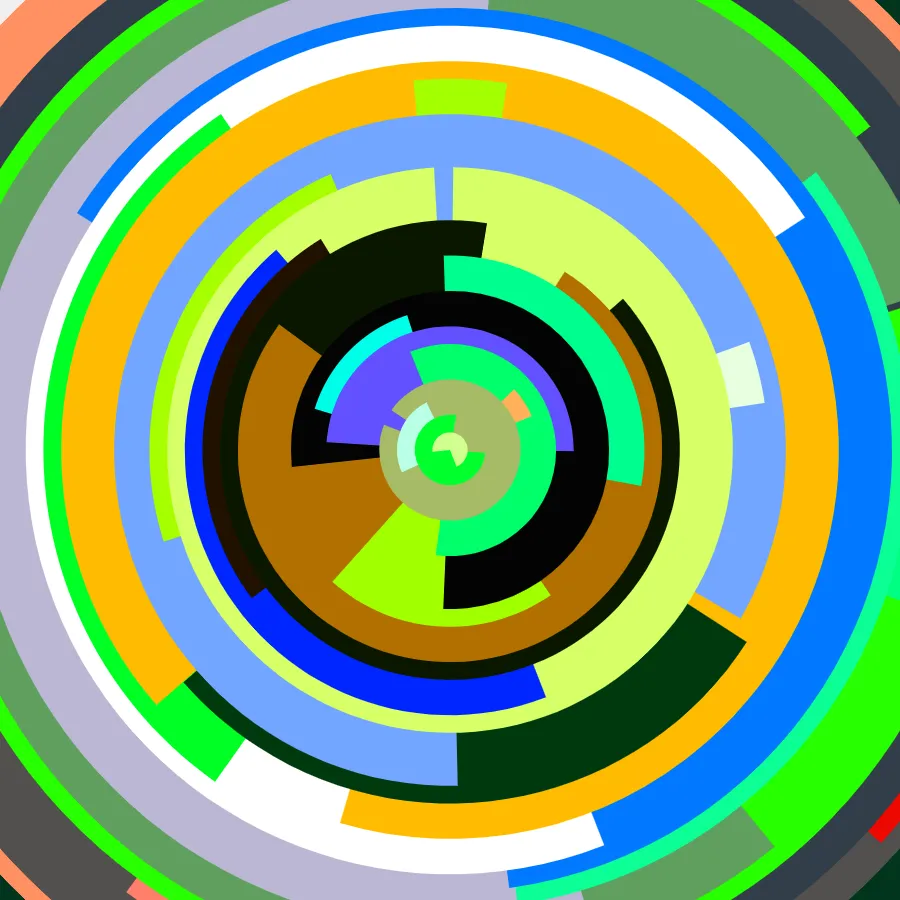

Homework — Geometric Abstraction

Week 2 assignment — geometric abstraction. Some solutions. More in the repo.
